SUP70090E-GE3

SUP70090E-GE3

Part NumberSUP70090E-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 100V 50A TO-220

DatasheetSUP70090E

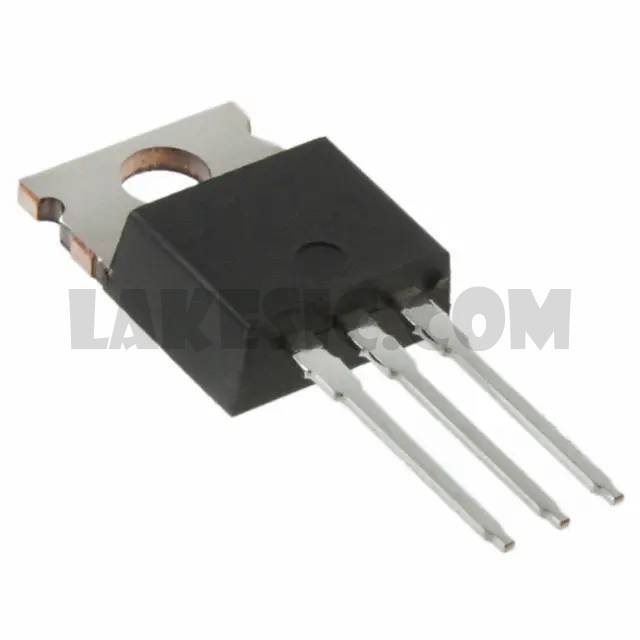

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 50A (Tc) 125W (Tc) Through Hole TO-220AB

To learn about the specification of SUP70090E-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SUP70090E-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SUP70090E-GE3.
We are offering SUP70090E-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SUP70090E-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SUP70090E
Standard Package	500
Manufacturer	Vishay Siliconix
Series	ThunderFET®
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1950pF @ 50V
FET Feature	-
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
