Categories	Capacitors / Tantalum Capacitors
Datasheet	TAP Series
Standard Package	1000
Manufacturer	AVX Corporation
Series	TAP
Packaging	Bulk
Part Status	Active
Capacitance	15µF
Tolerance	±20%
Voltage - Rated	35V
Type	Conformal Coated
ESR (Equivalent Series Resistance)	1.6Ohm
Operating Temperature	-55°C ~ 125°C
Lifetime @ Temp.	1000 Hrs @ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.276" Dia (7.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Lead Spacing	0.250" (6.35mm)
Manufacturer Size Code	H
Features	General Purpose
Failure Rate	-

TAP685K016SCS	AVX Corporation, 6.8µF Conformal Coated Tantalum Capacitors 16V Radial 4Ohm, TAP	View
TAP106K035CRW	AVX Corporation, 10µF Conformal Coated Tantalum Capacitors 35V Radial 2Ohm, TAP	View
TAP107M020CRW	AVX Corporation, 100µF Conformal Coated Tantalum Capacitors 20V Radial 600mOhm, TAP	View
TAP225K010SCS	AVX Corporation, 2.2µF Conformal Coated Tantalum Capacitors 10V Radial 13Ohm, TAP	View
TAP104K050SRS	AVX Corporation, 0.1µF Conformal Coated Tantalum Capacitors 50V Radial 26Ohm, TAP	View
TAP106K035CRW	AVX Corporation, 10µF Conformal Coated Tantalum Capacitors 35V Radial 2Ohm, TAP	View
TAP156K025SRW	AVX Corporation, 15µF Conformal Coated Tantalum Capacitors 25V Radial 2Ohm, TAP	View
TAP225K016CCS	AVX Corporation, 2.2µF Conformal Coated Tantalum Capacitors 16V Radial 8Ohm, TAP	View
TAP107K006SCS	AVX Corporation, 100µF Conformal Coated Tantalum Capacitors 6.3V Radial 1.6Ohm, TAP	View
TAP336K006SCS	AVX Corporation, 33µF Conformal Coated Tantalum Capacitors 6.3V Radial 3Ohm, TAP	View
TAP156K020SCS	AVX Corporation, 15µF Conformal Coated Tantalum Capacitors 20V Radial 2.3Ohm, TAP	View
TAP685K010SCS	AVX Corporation, 6.8µF Conformal Coated Tantalum Capacitors 10V Radial 6Ohm, TAP	View

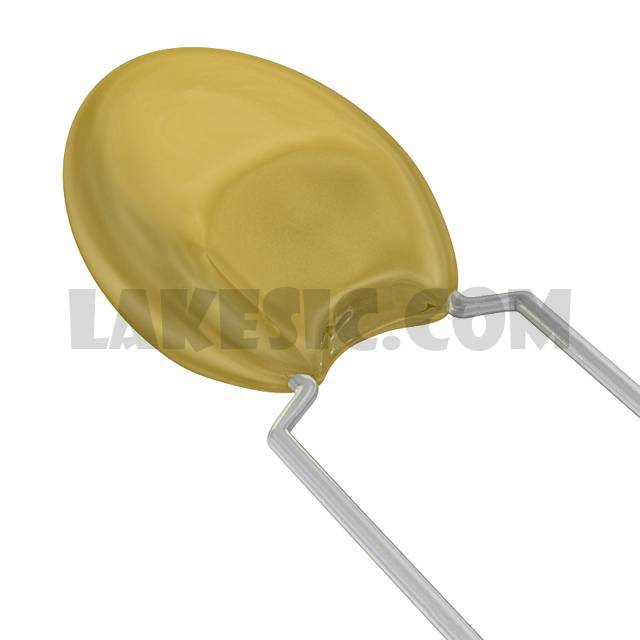

TAP156M035HSB

Part NumberTAP156M035HSB
