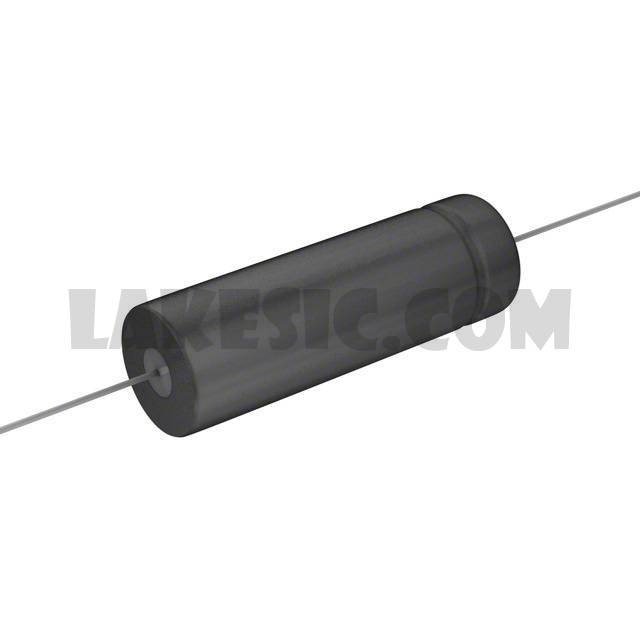

TCG632U015L2L

Part NumberTCG632U015L2L

ManufacturerCornell Dubilier Electronics (CDE)

DescriptionCAP ALUM 6300UF 15V AXIAL

DatasheetTCG Type

Package / CaseAxial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6300µF 15V Aluminum Electrolytic Capacitors Axial, Can 55mOhm @ 120Hz 1000 Hrs @ 85°C

To learn about the specification of TCG632U015L2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TCG632U015L2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TCG632U015L2L.
We are offering TCG632U015L2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TCG632U015L2L - Product Attributes

Categories

Capacitors / Aluminum Electrolytic Capacitors

Datasheet

TCG Type

Standard Package

Manufacturer

Cornell Dubilier Electronics (CDE)

Series

TCG

Packaging

Bulk

Part Status

Obsolete

Capacitance

6300µF

Tolerance

-10%, +75%

Voltage - Rated

15V

ESR (Equivalent Series Resistance)

55mOhm @ 120Hz

Lifetime @ Temp.

1000 Hrs @ 85°C

Operating Temperature

-40°C ~ 85°C

Polarization

Polar

Ratings

Applications

General Purpose

Ripple Current @ Low Frequency

3.612A @ 120Hz

Ripple Current @ High Frequency

4.12A @ 2.4kHz

Lead Spacing

Size / Dimension

0.875" Dia x 2.625" L (22.22mm x 66.68mm)

Height - Seated (Max)

Surface Mount Land Size

Mounting Type

Through Hole

Package / Case

Axial, Can
