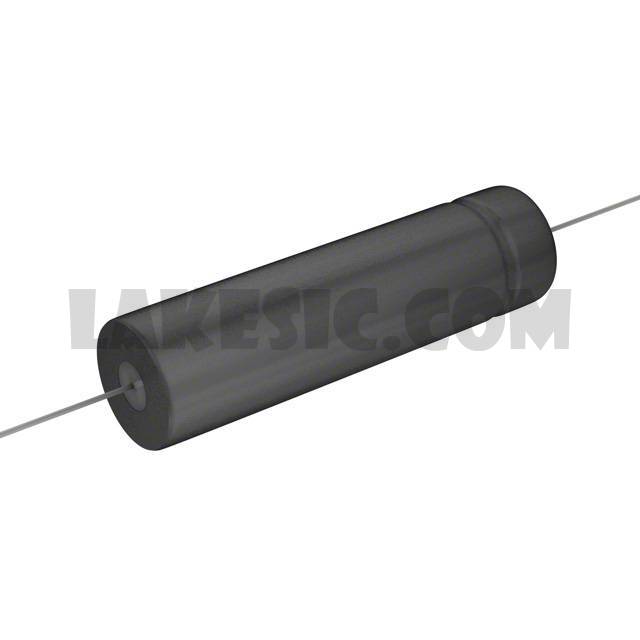

TCX123U015N3L

Part NumberTCX123U015N3L

ManufacturerCornell Dubilier Electronics (CDE)

DescriptionCAP ALUM 12000UF 15V AXIAL

DatasheetTCX Type

Package / CaseAxial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description12000µF 15V Aluminum Electrolytic Capacitors Axial, Can 19mOhm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of TCX123U015N3L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TCX123U015N3L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TCX123U015N3L.
We are offering TCX123U015N3L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TCX123U015N3L - Product Attributes

Categories

Capacitors / Aluminum Electrolytic Capacitors

Datasheet

TCX Type

Standard Package

Manufacturer

Cornell Dubilier Electronics (CDE)

Series

TCX

Packaging

Bulk

Part Status

Obsolete

Capacitance

12000µF

Tolerance

-10%, +75%

Voltage - Rated

15V

ESR (Equivalent Series Resistance)

19mOhm @ 120Hz

Lifetime @ Temp.

2000 Hrs @ 105°C

Operating Temperature

-55°C ~ 105°C

Polarization

Polar

Ratings

Applications

General Purpose

Ripple Current @ Low Frequency

7.589A @ 120Hz

Ripple Current @ High Frequency

8.65A @ 2.4kHz

Lead Spacing

Size / Dimension

1.000" Dia x 3.625" L (25.40mm x 92.08mm)

Height - Seated (Max)

Surface Mount Land Size

Mounting Type

Through Hole

Package / Case

Axial, Can
