TIP29B-BP

TIP29B-BP

Part NumberTIP29B-BP

ManufacturerMicro Commercial Co

DescriptionTRANS NPN 80V 1A TO-220

DatasheetTIP29-30(A,B,C)

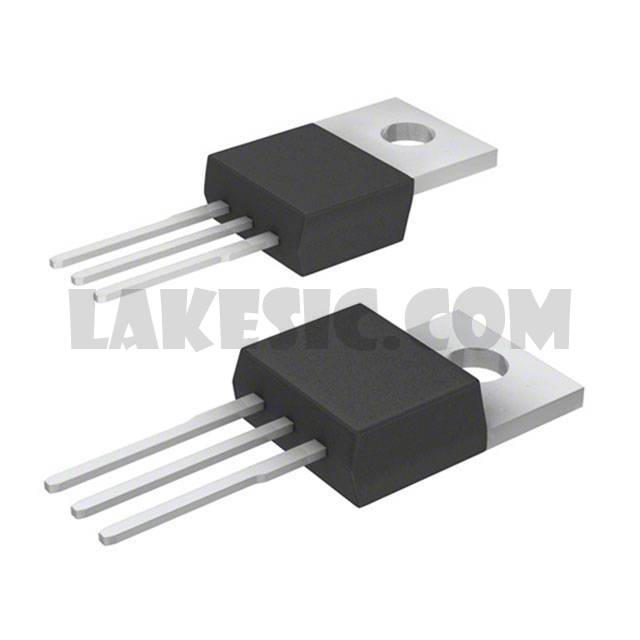

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 3MHz 30W Through Hole TO-220

To learn about the specification of TIP29B-BP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TIP29B-BP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TIP29B-BP.
We are offering TIP29B-BP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TIP29B-BP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	TIP29-30(A,B,C)
Standard Package	1000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	700mV @ 125mA, 1A
Current - Collector Cutoff (Max)	300µA
DC Current Gain (hFE) (Min) @ Ic, Vce	15 @ 1A, 4V
Power - Max	30W
Frequency - Transition	3MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
Base Part Number	TIP29
