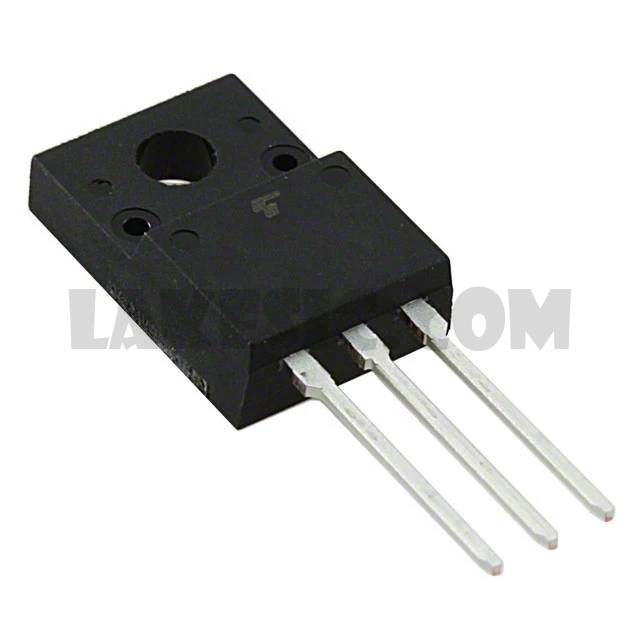

TK20A60U(Q,M)

TK20A60U(Q,M)

Part NumberTK20A60U(Q,M)

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 20A TO-220SIS

DatasheetTK20A60U

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 20A (Ta) 45W (Tc) Through Hole TO-220SIS

To learn about the specification of TK20A60U(Q,M), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK20A60U(Q,M) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK20A60U(Q,M).
We are offering TK20A60U(Q,M) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK20A60U(Q,M) - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK20A60U
Standard Package	50
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSII
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1470pF @ 10V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
