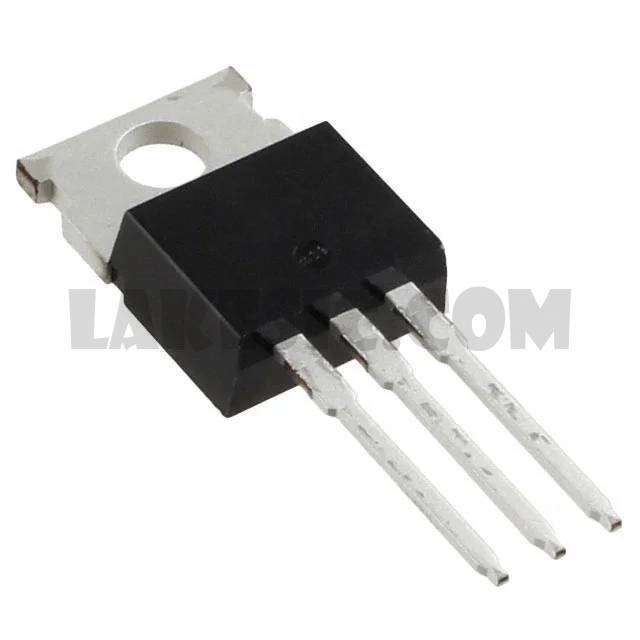

TK3R1E04PL,S1X

TK3R1E04PL,S1X

Part NumberTK3R1E04PL,S1X

ManufacturerToshiba Semiconductor and Storage

DescriptionX35 PB-F POWER MOSFET TRANSISTOR

DatasheetTK3R1E04PL

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 100A (Tc) 87W (Tc) Through Hole TO-220

To learn about the specification of TK3R1E04PL,S1X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK3R1E04PL,S1X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK3R1E04PL,S1X.
We are offering TK3R1E04PL,S1X for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK3R1E04PL,S1X - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK3R1E04PL
Standard Package	50
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 30A, 4.5V
Vgs(th) (Max) @ Id	2.4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	63.4nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4670pF @ 20V
FET Feature	-
Power Dissipation (Max)	87W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
