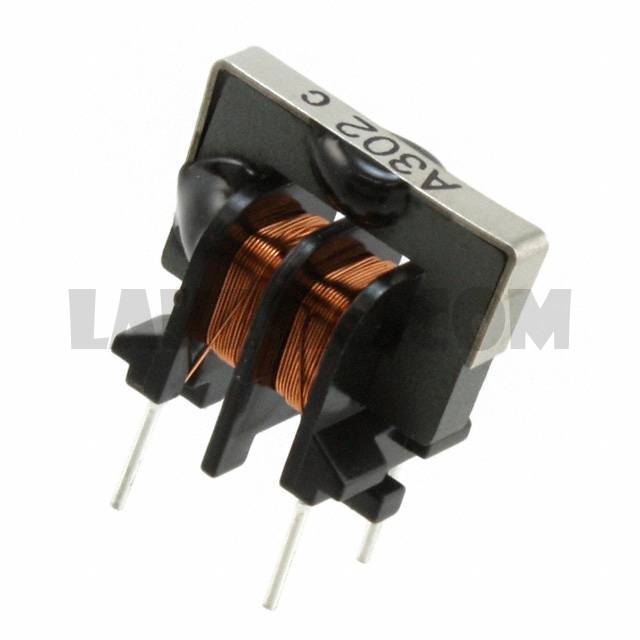

TLF9UA302WR42K1

Part NumberTLF9UA302WR42K1

ManufacturerTaiyo Yuden

DescriptionCMC 3MH 420MA 2LN TH

DatasheetTLF9UA302WR42K1 View all Specification

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3mH @ 1kHz 2 Line Common Mode Choke Through Hole 420mA DCR 1.5Ohm

To learn about the specification of TLF9UA302WR42K1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TLF9UA302WR42K1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TLF9UA302WR42K1.
We are offering TLF9UA302WR42K1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TLF9UA302WR42K1 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TLF9UA302WR42K1 View all Specification

Standard Package

500

Manufacturer

Taiyo Yuden

Series

TLF9

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

3mH @ 1kHz

Current Rating (Max)

420mA

DC Resistance (DCR) (Max)

1.5Ohm

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-25°C ~ 105°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

0.669" L x 0.433" W (17.00mm x 11.00mm)

Height (Max)

0.630" (16.00mm)

Package / Case

Vertical, 4 PC Pin
