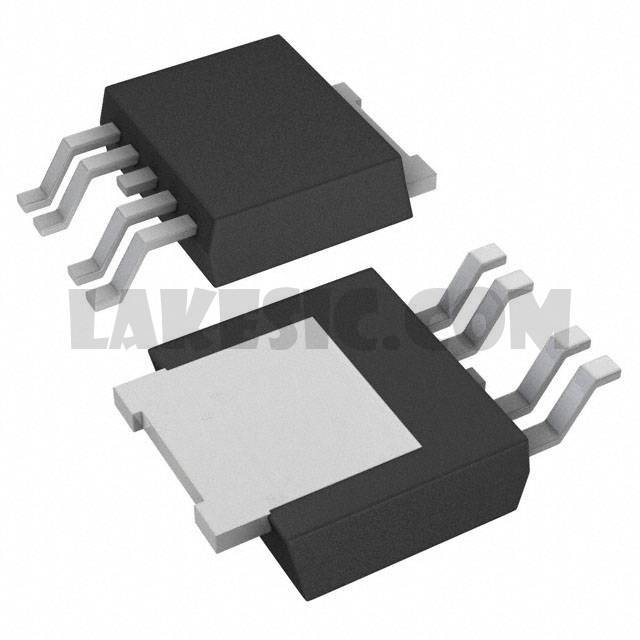

TMC1620-TO

Part NumberTMC1620-TO

ManufacturerTrinamic Motion Control GmbH

DescriptionMOSFET N/P-CH 60V TO252-4

DatasheetTMC1620-TO

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 60V 6.6A, 4.7A 3.13W Surface Mount TO-252-4L

To learn about the specification of TMC1620-TO, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TMC1620-TO with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TMC1620-TO.
We are offering TMC1620-TO for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TMC1620-TO - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

TMC1620-TO

Standard Package

3000

Manufacturer

Trinamic Motion Control GmbH

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N and P-Channel, Common Drain

FET Feature

Standard

Drain to Source Voltage (Vdss)

60V

Current - Continuous Drain (Id) @ 25°C

6.6A, 4.7A

Rds On (Max) @ Id, Vgs

36mOhm @ 6A, 10V

Vgs(th) (Max) @ Id

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

19.2nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

1560pF @ 25V

Power - Max

3.13W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Supplier Device Package

TO-252-4L
