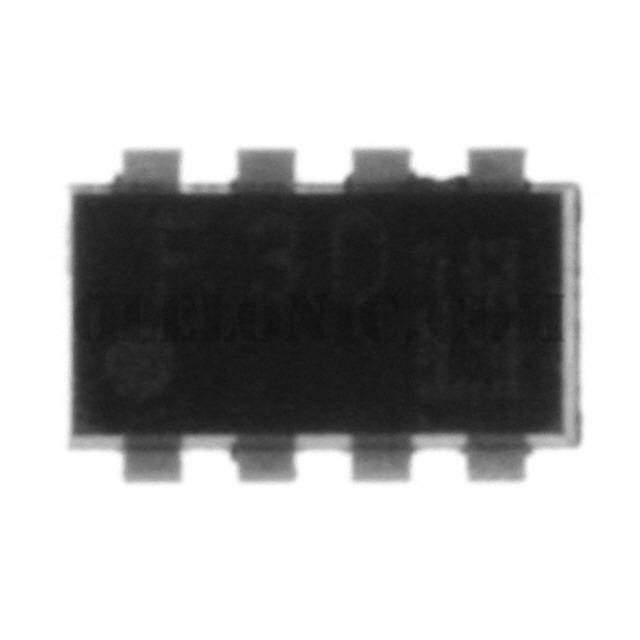

TPCF8104(TE85L,F,M

Part NumberTPCF8104(TE85L,F,M

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET P-CH 30V 6A VS-8

DatasheetTPCF8104

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 6A (Ta) 700mW (Ta) Surface Mount VS-8 (2.9x1.5)

To learn about the specification of TPCF8104(TE85L,F,M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPCF8104(TE85L,F,M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPCF8104(TE85L,F,M.
We are offering TPCF8104(TE85L,F,M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPCF8104(TE85L,F,M - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPCF8104

Standard Package

Manufacturer

Toshiba Semiconductor and Storage

Series

U-MOSIV

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

6A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

28mOhm @ 3A, 10V

Vgs(th) (Max) @ Id

2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

34nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1760pF @ 10V

FET Feature

Power Dissipation (Max)

700mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

VS-8 (2.9x1.5)

Package / Case

8-SMD, Flat Lead
