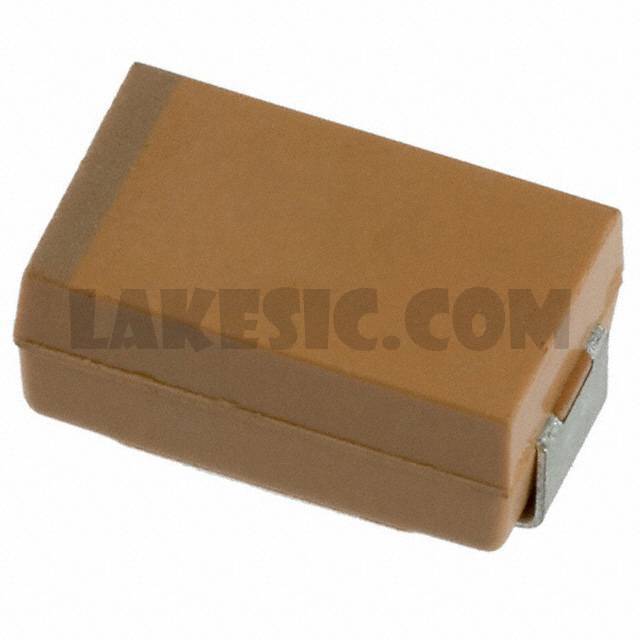

Categories	Capacitors / Tantalum Capacitors
Datasheet	TPS Series, Low ESR
Standard Package	400
Manufacturer	AVX Corporation
Series	TPS
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
Type	Molded
ESR (Equivalent Series Resistance)	200mOhm @ 100kHz
Operating Temperature	-55°C ~ 125°C
Lifetime @ Temp.	2000 Hrs @ 125°C
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.169" (4.30mm)
Lead Spacing	-
Manufacturer Size Code	E
Ratings	-
Features	General Purpose
Failure Rate	-
