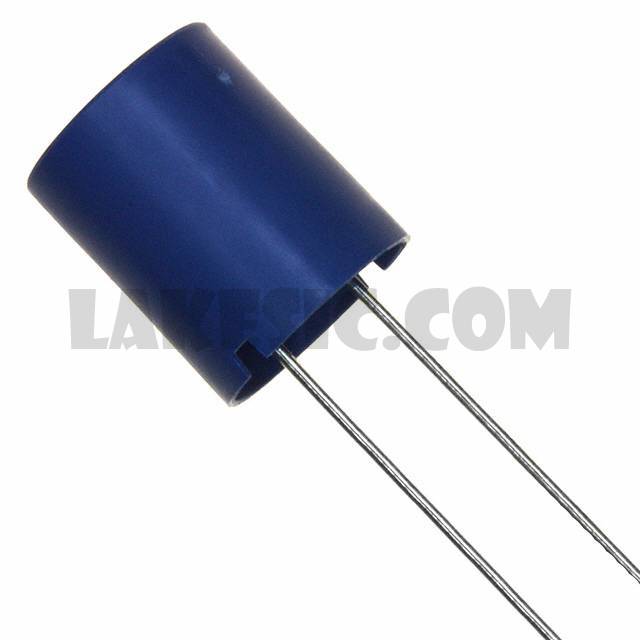

TSL1315RA-101K2R5-PF

Part NumberTSL1315RA-101K2R5-PF

ManufacturerTDK Corporation

DescriptionFIXED IND 100UH 2.5A 97 MOHM TH

DatasheetTSL Series Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Inductor 2.5A 97mOhm Max Radial, Vertical Cylinder

To learn about the specification of TSL1315RA-101K2R5-PF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSL1315RA-101K2R5-PF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSL1315RA-101K2R5-PF.
We are offering TSL1315RA-101K2R5-PF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSL1315RA-101K2R5-PF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

TSL Series Datasheet

Standard Package

200

Manufacturer

TDK Corporation

Series

TSL

Packaging

Tape & Box (TB)

Part Status

Obsolete

Type

Material - Core

Inductance

100µH

Tolerance

±10%

Current Rating (Amps)

2.5A

Current - Saturation

3.9A

Shielding

Unshielded

DC Resistance (DCR)

97mOhm Max

Q @ Freq

50 @ 796kHz

Frequency - Self Resonant

3.3MHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder

Supplier Device Package

Size / Dimension

0.551" Dia (14.00mm)

Height - Seated (Max)

0.669" (17.00mm)
