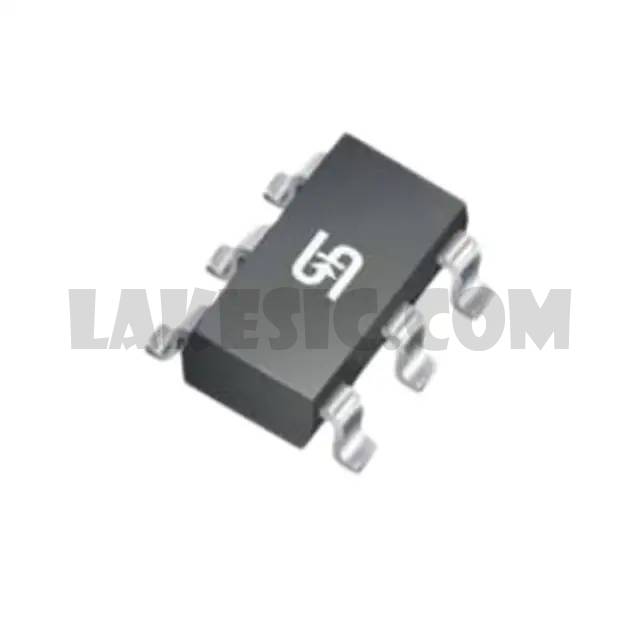

TSM3911DCX6 RFG

TSM3911DCX6 RFG

Part NumberTSM3911DCX6 RFG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET 2 P-CH 20V 2.2A SOT26

DatasheetTSM3911D

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 2.2A (Ta) 1.15W Surface Mount SOT-26

To learn about the specification of TSM3911DCX6 RFG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM3911DCX6 RFG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM3911DCX6 RFG.
We are offering TSM3911DCX6 RFG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM3911DCX6 RFG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TSM3911D
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.2A (Ta)
Rds On (Max) @ Id, Vgs	140mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	882.51pF @ 6V
Power - Max	1.15W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-26
