TSM4NB65CI C0G

TSM4NB65CI C0G

Part NumberTSM4NB65CI C0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 650V 4A ITO220

DatasheetTSM4NB65

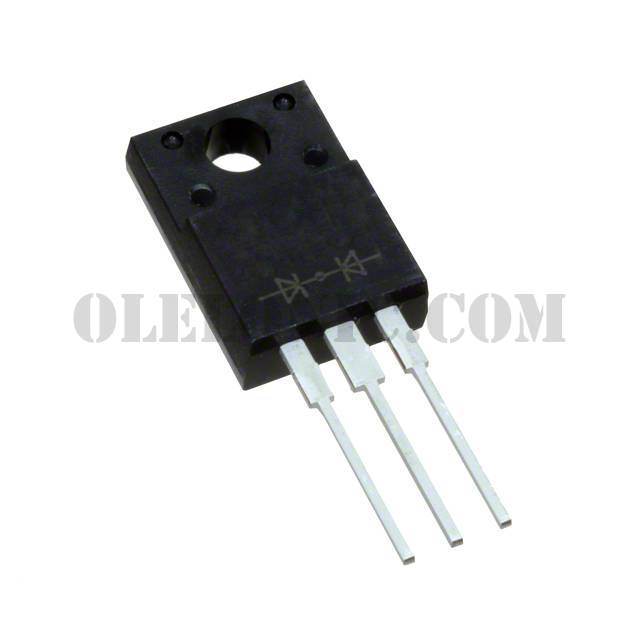

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 4A (Tc) 70W (Tc) Through Hole ITO-220AB

To learn about the specification of TSM4NB65CI C0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM4NB65CI C0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM4NB65CI C0G.
We are offering TSM4NB65CI C0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM4NB65CI C0G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM4NB65
Standard Package	1000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.37Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13.46nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	549pF @ 25V
FET Feature	-
Power Dissipation (Max)	70W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ITO-220AB
Package / Case	TO-220-3 Full Pack, Isolated Tab
