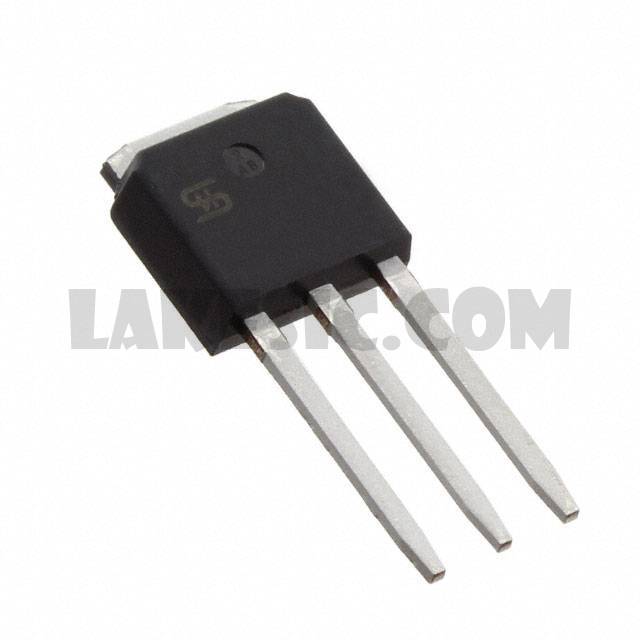

TSM60NB600CH C5G

TSM60NB600CH C5G

Part NumberTSM60NB600CH C5G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 600V 7A TO251

DatasheetTSM60NB600CH

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 7A (Tc) 63W (Tc) Through Hole TO-251 (IPAK)

To learn about the specification of TSM60NB600CH C5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM60NB600CH C5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM60NB600CH C5G.
We are offering TSM60NB600CH C5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM60NB600CH C5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM60NB600CH
Standard Package	1875
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	516pF @ 100V
FET Feature	-
Power Dissipation (Max)	63W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
