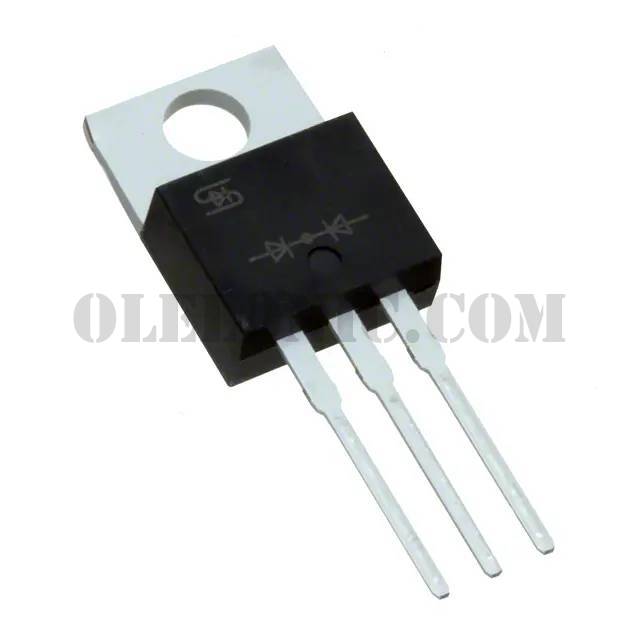

TSM85N10CZ C0G

TSM85N10CZ C0G

Part NumberTSM85N10CZ C0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 100V 81A TO220

DatasheetTSM85N10

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 81A (Tc) 210W (Tc) Through Hole TO-220

To learn about the specification of TSM85N10CZ C0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM85N10CZ C0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM85N10CZ C0G.
We are offering TSM85N10CZ C0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM85N10CZ C0G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM85N10
Standard Package	1000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	81A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	154nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3900pF @ 30V
FET Feature	-
Power Dissipation (Max)	210W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
