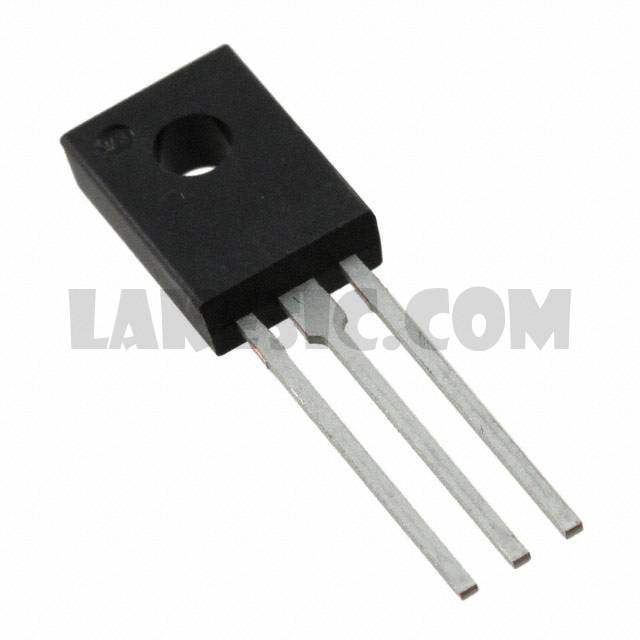

TTA004B,Q

TTA004B,Q

Part NumberTTA004B,Q

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS PNP 160V 1.5A TO126N

DatasheetTTA004B

Package / CaseTO-225AA, TO-126-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 160V 1.5A 100MHz 10W Through Hole TO-126N

To learn about the specification of TTA004B,Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TTA004B,Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TTA004B,Q.
We are offering TTA004B,Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TTA004B,Q - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	TTA004B
Standard Package	250
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	160V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	140 @ 100mA, 5V
Power - Max	10W
Frequency - Transition	100MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-126N
