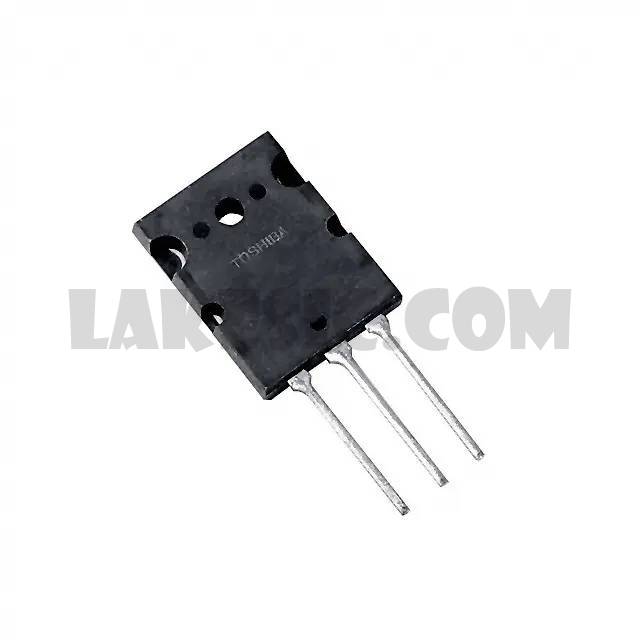

TTC5200(Q)

TTC5200(Q)

Part NumberTTC5200(Q)

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS NPN 230V 15A TO-3PL

DatasheetTTC5200

Package / CaseTO-3PL

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 230V 15A 30MHz 150W Through Hole TO-3P(L)

To learn about the specification of TTC5200(Q), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TTC5200(Q) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TTC5200(Q).
We are offering TTC5200(Q) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TTC5200(Q) - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	TTC5200
Standard Package	100
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	230V
Vce Saturation (Max) @ Ib, Ic	3V @ 800mA, 8A
Current - Collector Cutoff (Max)	5µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V
Power - Max	150W
Frequency - Transition	30MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3PL
Supplier Device Package	TO-3P(L)
