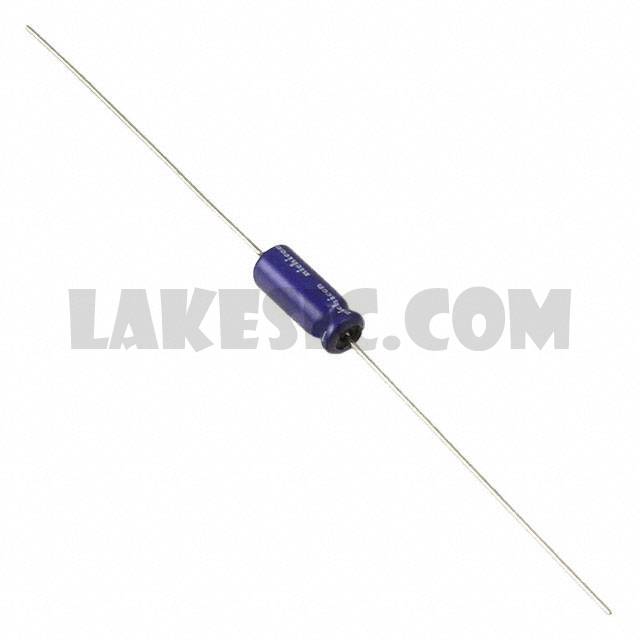

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	TVX
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	18mA @ 120Hz
Ripple Current @ High Frequency	36mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia x 0.472" L (5.00mm x 12.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can

TVX0J101MAD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2C330MCD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A470MAD1LV	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1J101MAD1LS	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V471MCD1LT	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2C010MAD	Nichicon, 1µF 160V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H100MAD1LS	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A330MAD1LS	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E682MDD	Nichicon, 6800µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2W2R2MCD	Nichicon, 2.2µF 450V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2C4R7MAD	Nichicon, 4.7µF 160V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1A103MCD	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

TVX2A010MAD1LS

Part NumberTVX2A010MAD1LS
