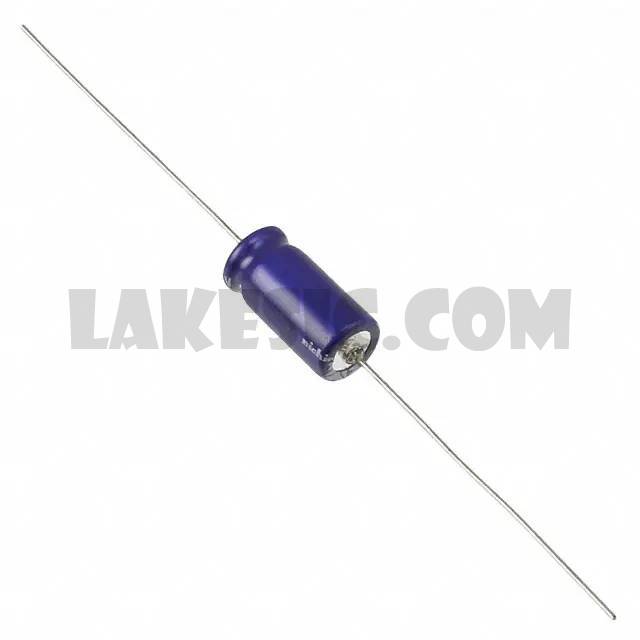

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	TVX
Packaging	Bulk
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	38mA @ 120Hz
Ripple Current @ High Frequency	60.8mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia x 0.906" L (10.00mm x 23.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can

TVX2G220MCD	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E102MCD1LZ	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E102MCD1LZ	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX0J471MAD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V471MCD1LT	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A330MAD1LS	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V101MAD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E330MAD1LS	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1J100MAD	Nichicon, 10µF 63V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V100MAD1LS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C471MAD1LS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1A471MAD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

TVX2G3R3MCD

Part NumberTVX2G3R3MCD
