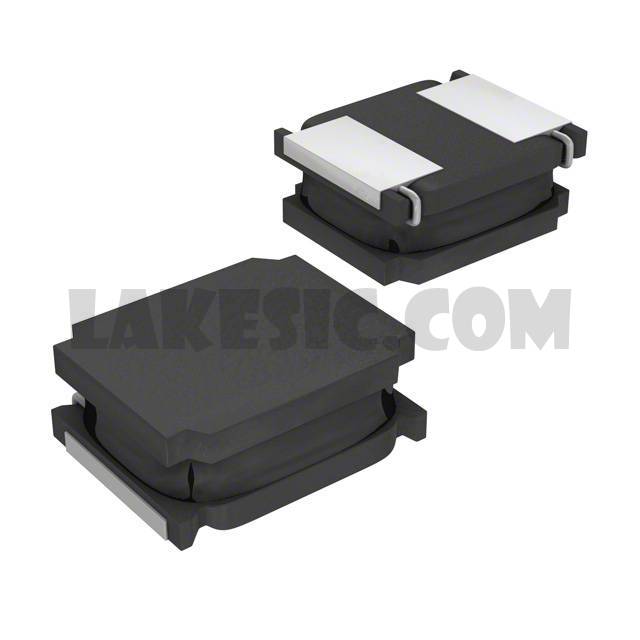

TYS252012L220M-10

Part NumberTYS252012L220M-10

To learn about the specification of TYS252012L220M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS252012L220M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS252012L220M-10.
We are offering TYS252012L220M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	TYS252012L Series Datasheet ~
Standard Package	2000
Manufacturer	Laird-Signal Integrity Products
Series	TYS252012L
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	-
Inductance	22µH
Tolerance	±20%
Current Rating (Amps)	380mA
Current - Saturation	530mA
Shielding	Shielded
DC Resistance (DCR)	1.824Ohm Max
Q @ Freq	-
Frequency - Self Resonant	20MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
