TYS40306R8M-10
TYS40306R8M-10

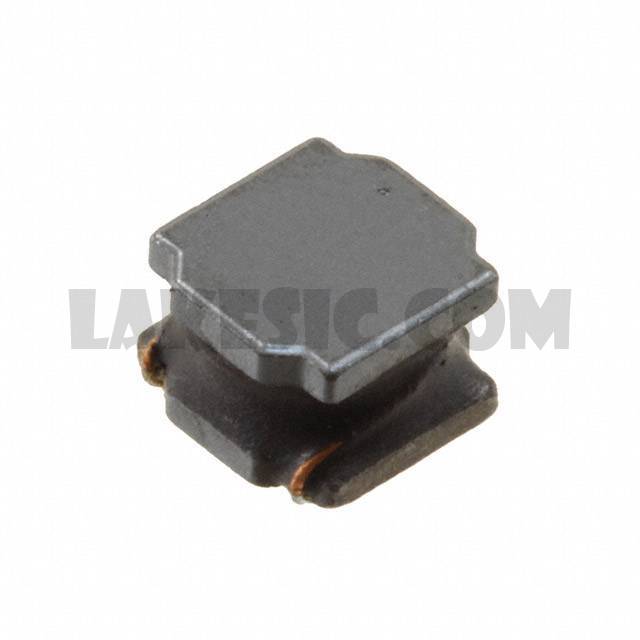

Part Number TYS40306R8M-10 Description FIXED IND 6.8UH 1.6A 117 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8µH Shielded Wirewound Inductor 1.6A 117mOhm Max Nonstandard
To learn about the specification of TYS40306R8M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS40306R8M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS40306R8M-10.
We are offering TYS40306R8M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TYS40306R8M-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet TYS40306R8M-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series TYS4030 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core - Inductance 6.8µH Tolerance ±20% Current Rating (Amps) 1.6A Current - Saturation 2.75A Shielding Shielded DC Resistance (DCR) 117mOhm Max Q @ Freq - Frequency - Self Resonant 24MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm) Height - Seated (Max) 0.118" (3.00mm)
