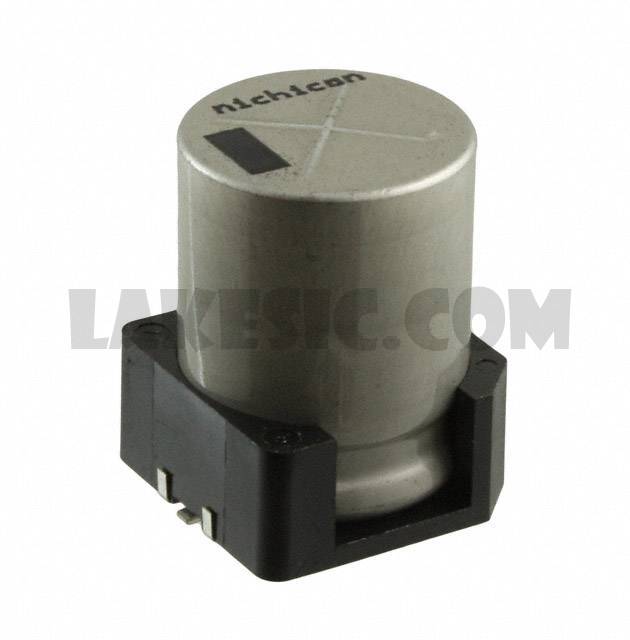

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBC Series
Standard Package	75
Manufacturer	Nichicon
Series	UBC
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	670mA @ 120Hz
Ripple Current @ High Frequency	1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.886" (22.50mm)
Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UBC1V221MNS1MS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1V101MNS1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C102MNS1MS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H330MNS1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C102MNS1MS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A221MNS1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1V331MNS1MS	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A221MNS1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H101MNS1MS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H470MNS1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C221MNS1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C101MNS1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View

UBC1E102MNS1MS

Part NumberUBC1E102MNS1MS
