Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBC Series
Standard Package	500
Manufacturer	Nichicon
Series	UBC
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 150°C
Operating Temperature	-40°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	67mA @ 120Hz
Ripple Current @ High Frequency	100mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

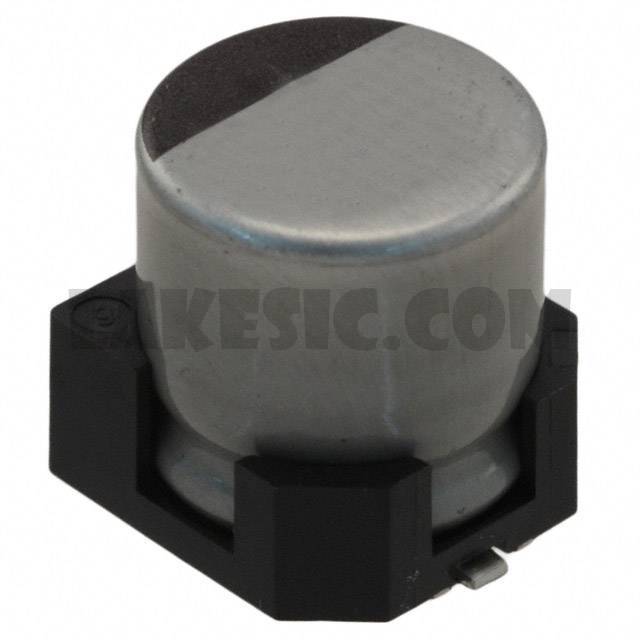

UBC1H470MNS1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H221MNS1MS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A332MNS1MS	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C221MNS1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C102MNS1MS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1E471MNS1MS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1V681MNS1MS	Nichicon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H471MNS1MS	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1E471MNS1MS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1V221MNS1MS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H221MNS1MS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H101MNS1MS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View

UBC1H470MNS1GS

Part NumberUBC1H470MNS1GS
