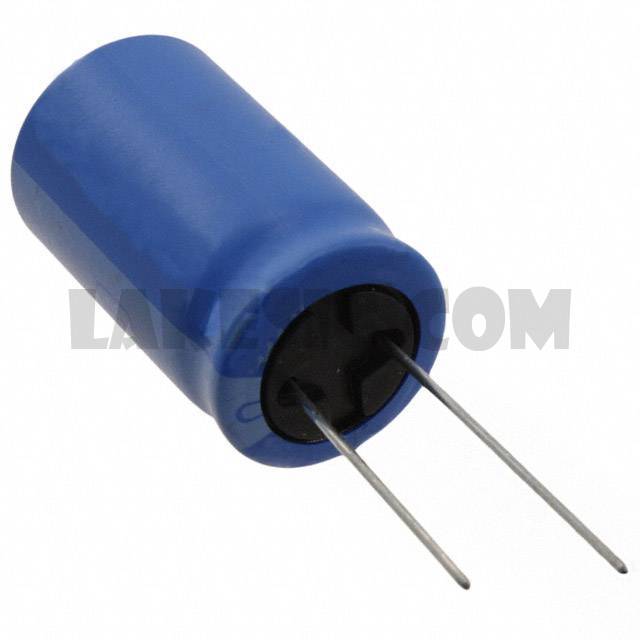

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	50
Manufacturer	Nichicon
Series	UBT
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	2.218A @ 120Hz
Ripple Current @ High Frequency	3.31A @ 100kHz
Impedance	17 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBT1H2R2MPD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1H331MHD1TO	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT2A4R7MPD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2W4R7MPD	Nichicon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT2A221MHD1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT2V220MHD1TO	Nichicon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 125°C, UBT	View
UBT1E101MPD1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C, UBT	View
UBT1H101MPD1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, UBT	View
UBT2A220MPD1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C, UBT	View
UBT1J101MPD	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C, UBT	View

UBT1E332MHD

Part NumberUBT1E332MHD
