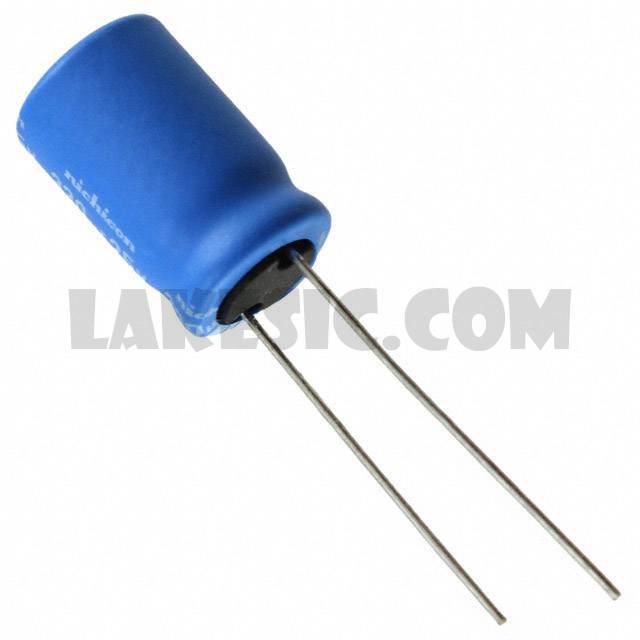

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	200
Manufacturer	Nichicon
Series	UBT
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	395mA @ 120Hz
Ripple Current @ High Frequency	790mA @ 100kHz
Impedance	94 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
