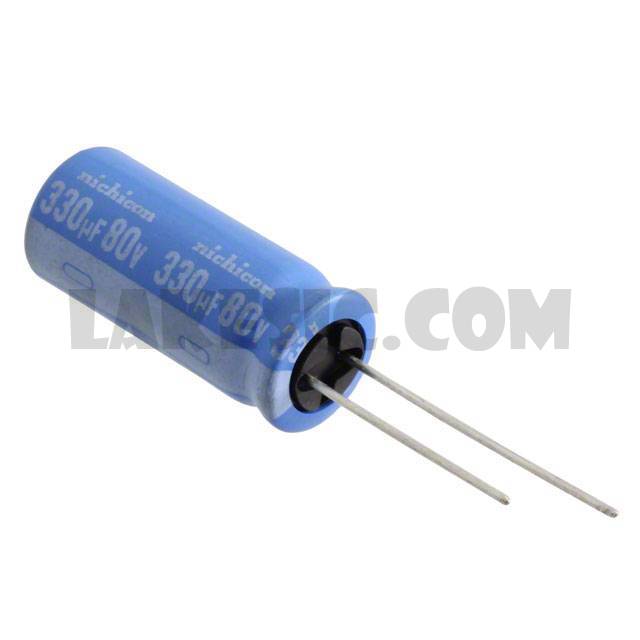

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBW Series
Standard Package	100
Manufacturer	Nichicon
Series	UBW
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 135°C
Operating Temperature	-55°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	695mA @ 120Hz
Ripple Current @ High Frequency	1.39A @ 100kHz
Impedance	160 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBW1C222MHD1TN	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1K221MHD1TO	Nichicon, 220µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1C221MPD1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1C332MHD	Nichicon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1K101MPD1TD	Nichicon, 100µF 80V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1K220MPD1TD	Nichicon, 22µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1H470MPD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1K471MHD1TN	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 135°C, UBW	View
UBW1E101MPD1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C, UBW	View
UBW1A332MHD1TN	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View
UBW1K221MHD1TO	Nichicon, 220µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C, UBW	View

UBW1K331MHD

Part NumberUBW1K331MHD
