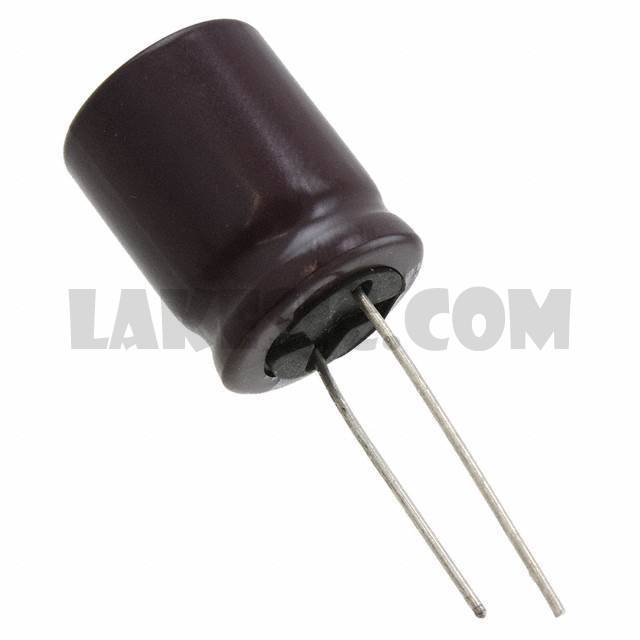

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCA Series
Standard Package	250
Manufacturer	Nichicon
Series	UCA
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	300mA @ 120Hz
Ripple Current @ High Frequency	600mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCA2D220MPD1TD	Nichicon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2C100MPD1TD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2C680MHD6TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E101MHD6	Nichicon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2W330MHD6TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D680MHD6TN	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2W330MHD6	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D221MHD	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2G330MHD6TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2G220MHD6	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D330MHD	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View

UCA2V330MHD1TN

Part NumberUCA2V330MHD1TN
