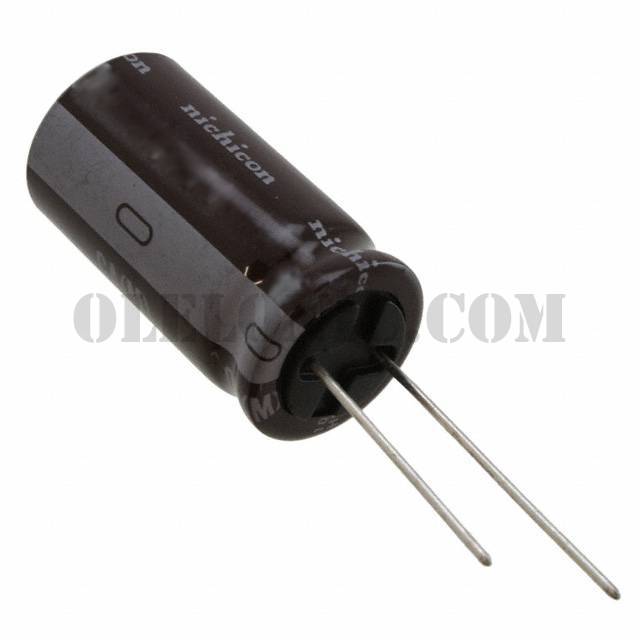

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCA Series
Standard Package	1
Manufacturer	Nichicon
Series	UCA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	437.5mA @ 120Hz
Ripple Current @ High Frequency	875mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
