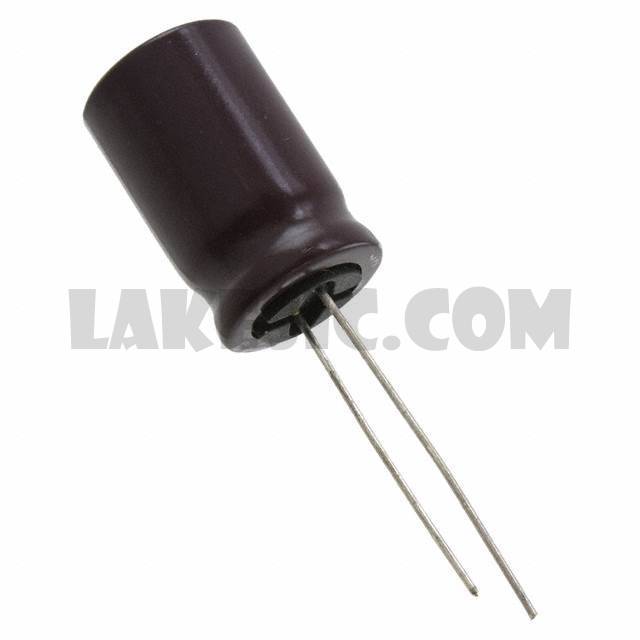

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCA Series
Standard Package	500
Manufacturer	Nichicon
Series	UCA
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	160mA @ 120Hz
Ripple Current @ High Frequency	320mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCA2C101MHD6TN	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2V470MHD1TN	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E101MHD	Nichicon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E680MHD6TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E100MPD1TD	Nichicon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2V220MHD1TO	Nichicon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2G100MPD1TD	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2G330MHD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2G6R8MPD1TD	Nichicon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2G100MPD1TD	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2W100MHD1TO	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View

UCA2W100MHD1TO

Part NumberUCA2W100MHD1TO
