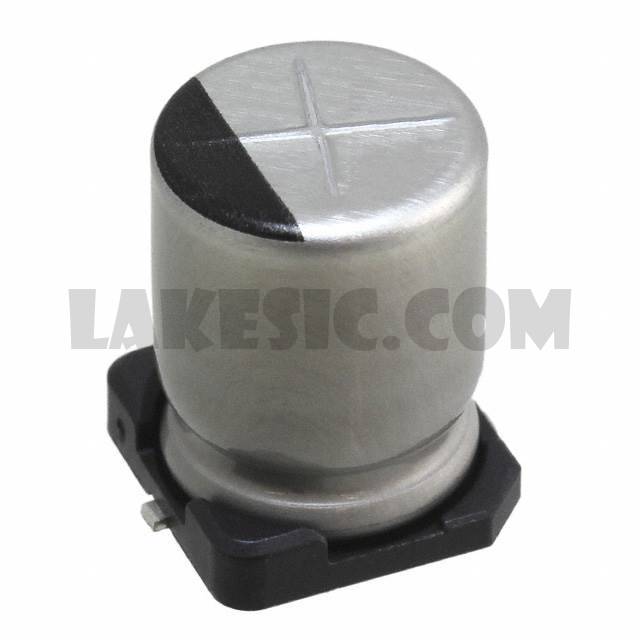

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCB Series
Standard Package	1
Manufacturer	Nichicon
Series	UCB
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	141mA @ 120Hz
Ripple Current @ High Frequency	211.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCB1C470MCL1GS	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1E330MCL1GS	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V3R3MCL1GS	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V330MCL1GS	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J221MCL1GS	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J470MCL1GS	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V4R7MCL1GS	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J220MCL1GS	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V221MNL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1VR47MCL1GS	Nichicon, 0.47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V010MCL1GS	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1H101MNL1GS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View

UCB1A221MNL1GS

Part NumberUCB1A221MNL1GS
