Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCB Series
Standard Package	1500
Manufacturer	Nichicon
Series	UCB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	18mA @ 120Hz
Ripple Current @ High Frequency	27mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCB1V2R2MCL1GS	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V3R3MCL1GS	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1C101MCL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1E330MCL1GS	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1C100MCL1GS	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1A330MCL1GS	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V4R7MCL1GS	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1H330MNL1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J470MCL1GS	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1E101MNL1GS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1A221MNL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View

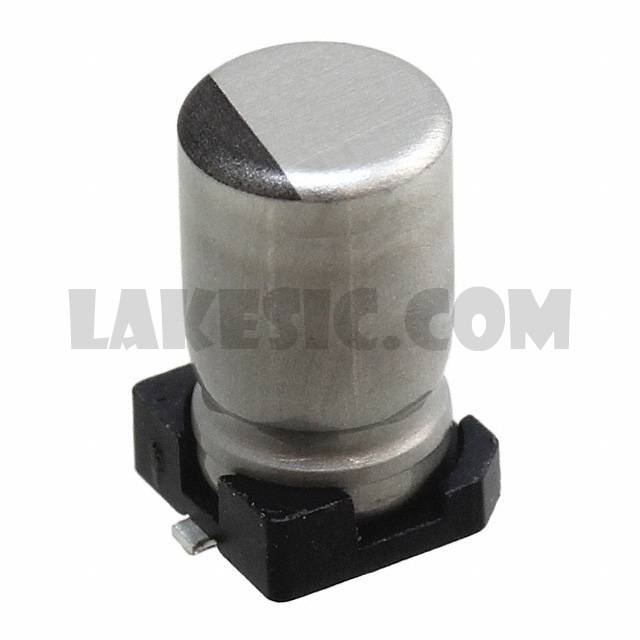

UCB1C100MCL1GS

Part NumberUCB1C100MCL1GS
