Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	80mA @ 120Hz
Ripple Current @ High Frequency	160mA @ 100kHz
Impedance	700 mOhms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCD0J681MNL1GS	Nichicon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1A220MCL1GS	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1E470MCL1GS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1H100MCL6GS	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1K100MCL6GS	Nichicon, 10µF 80V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1E102MNQ1MS	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1E331MNL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A151MNQ1MS	Nichicon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1C102MNL1GS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A101MNQ1MS	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD0J101MCL6GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1C152MNQ1MS	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View

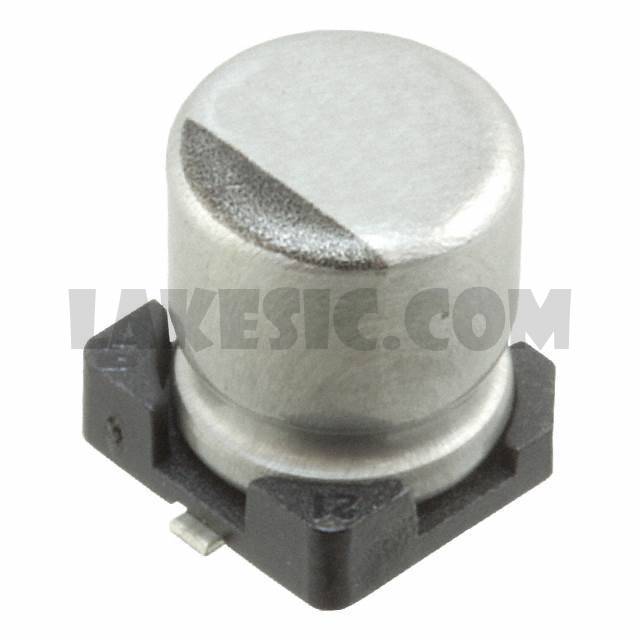

UCD0J101MCL6GS

Part NumberUCD0J101MCL6GS
