Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	240mA @ 100kHz
Impedance	360 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount

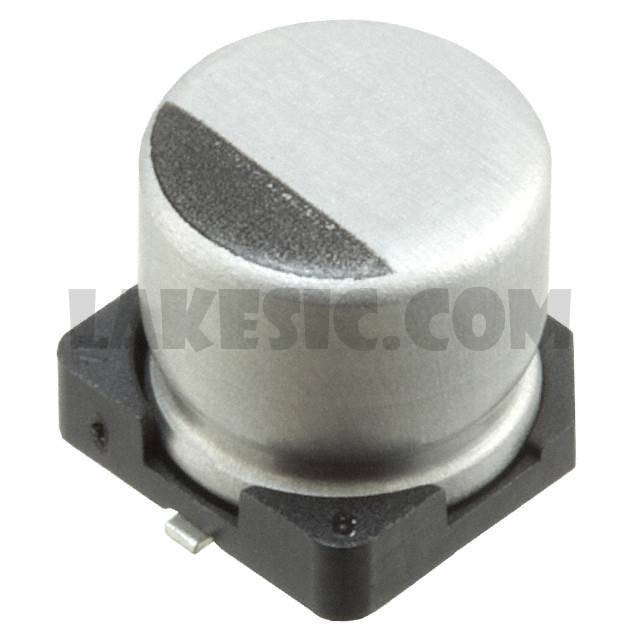

Package / Case	Radial, Can - SMD

UCD1E222MNQ1MS	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1K151MNQ1MS	Nichicon, 150µF 80V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1A681MNL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A330MNL1GS	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD2A101MNQ1MS	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD0J680MCL1GS	Nichicon, 68µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1C681MNL1GS	Nichicon, 680µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD0J332MNQ1MS	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1H330MCL1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1A102MNL1GS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1K4R7MCL1GS	Nichicon, 4.7µF 80V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V680MCL1GS	Nichicon, 68µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View

UCD1C101MCL1GS

Part NumberUCD1C101MCL1GS
