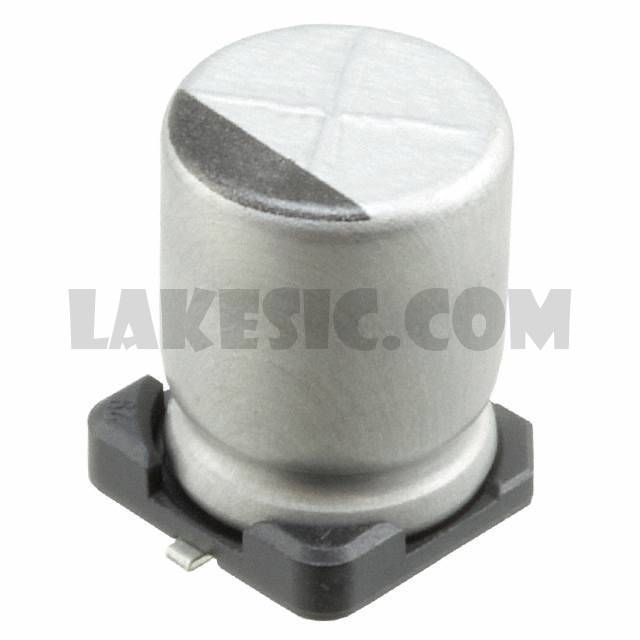

UCD1E221MNL1GS


UCD1E221MNL1GS

Part NumberUCD1E221MNL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UCD1E221MNL1GS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesUCD
PackagingCut Tape (CT)
Part StatusActive
Capacitance220µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency300mA @ 120Hz
Ripple Current @ High Frequency600mA @ 100kHz
Impedance160 mOhms
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
