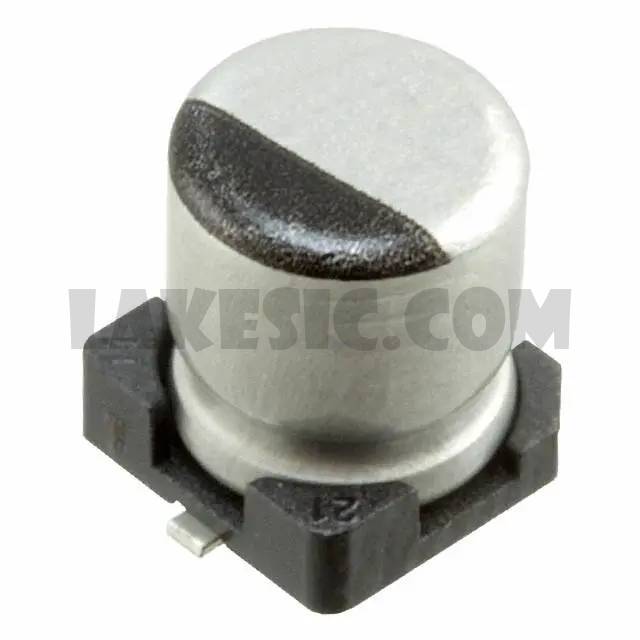

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	UCD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	25mA @ 120Hz
Ripple Current @ High Frequency	50mA @ 100kHz
Impedance	3 Ohms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCD1C680MCL1GS	Nichicon, 68µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V681MNQ1MS	Nichicon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1A471MNL1GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD2A220MNL1GS	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1A221MCL6GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V221MNL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V470MCL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1E151MNL1GS	Nichicon, 150µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A331MNQ1MS	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1E222MNQ1MS	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A680MNQ1MS	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View

UCD1J4R7MCL1GS

Part NumberUCD1J4R7MCL1GS
