Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCL Series
Standard Package	900
Manufacturer	Nichicon
Series	UCL
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	300mA @ 120Hz
Ripple Current @ High Frequency	600mA @ 100kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCL1V100MCL6GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1A221MCL6GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J101MCL6GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V100MCL6GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1E471MNL1GS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J331MCL6GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1E101MCL1GS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V151MCL6GS	Nichicon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J152MNL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J331MCL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1C151MCL1GS	Nichicon, 150µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V101MCL6GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View

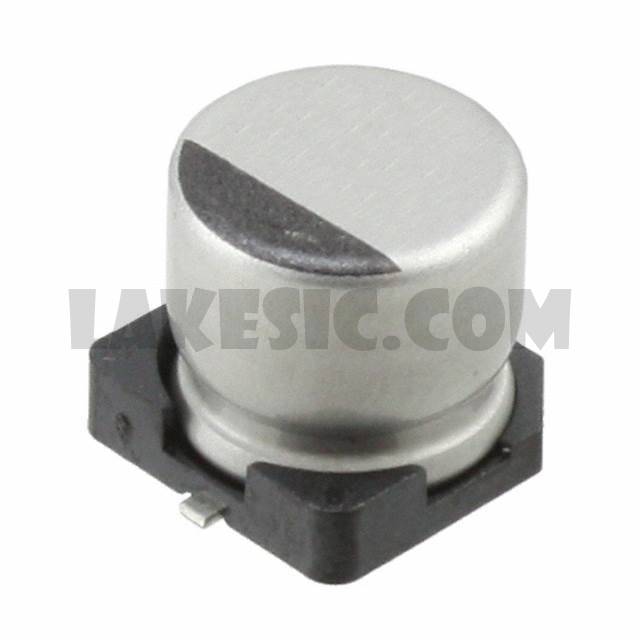

UCL1C221MCL1GS

Part NumberUCL1C221MCL1GS
