Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCS
Packaging	Cut Tape (CT)
Part Status	Active

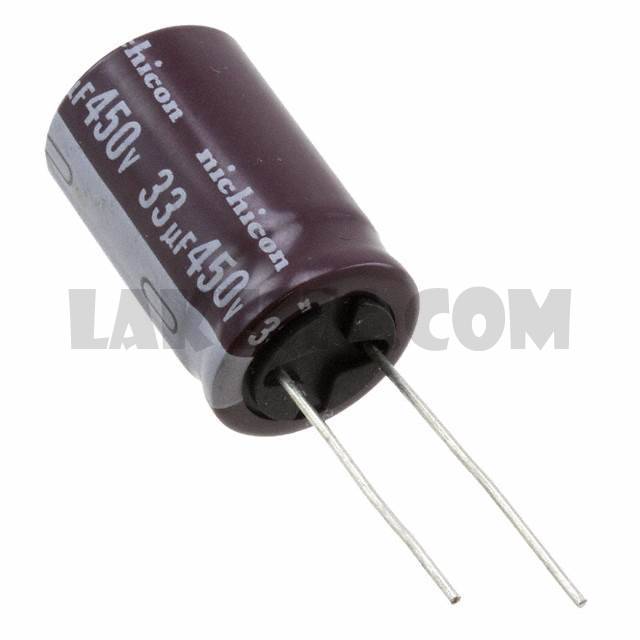

Capacitance	33µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	490mA @ 120Hz
Ripple Current @ High Frequency	980mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2C680MHD1TO	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W330MHD1TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2V470MHD	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C221MHD1TN	Nichicon, 220µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W100MHD	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C470MPD1TD	Nichicon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2D100MPD1TD	Nichicon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2E151MHD	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D101MHD1TN	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D221MNY9	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D101MHD1TN	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E220MPD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View

UCS2W330MHD1TN

Part NumberUCS2W330MHD1TN
