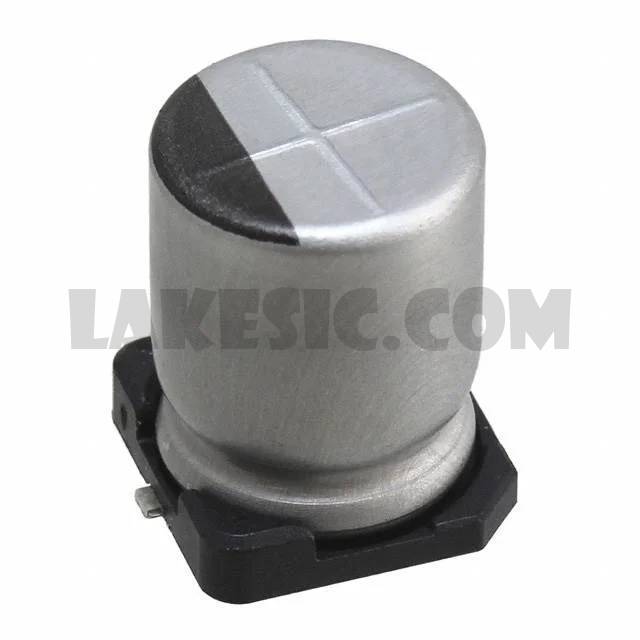

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCW Series
Standard Package	500
Manufacturer	Nichicon
Series	UCW
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	175mA @ 120Hz
Ripple Current @ High Frequency	350mA @ 100kHz
Impedance	530 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCW1C101MCL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW0J470MCL1GS	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1V220MCL1GS	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1V470MCL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1E220MCL1GS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1E221MNL1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW0J101MCL1GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1V100MCL1GS	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1E331MNL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW0J221MCL1GS	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View
UCW1V330MCL1GS	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCW	View

UCW1H101MNL1GS

Part NumberUCW1H101MNL1GS
