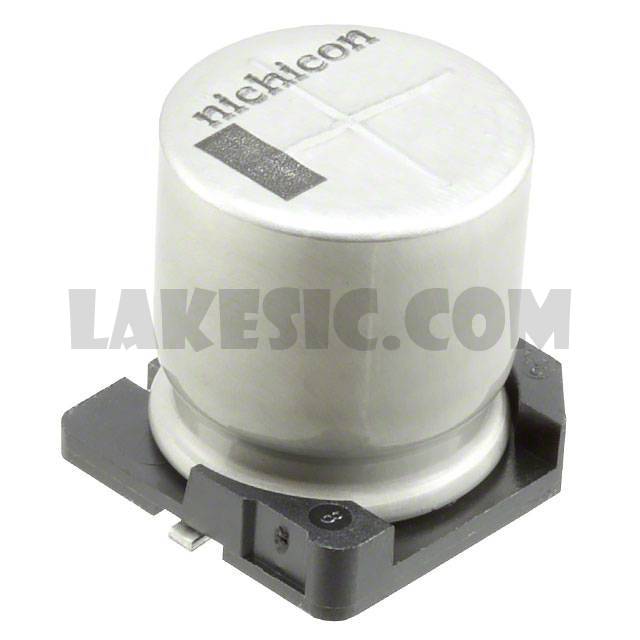

UCX1V561MNQ1MS

UCX1V561MNQ1MS

Part NumberUCX1V561MNQ1MS

ManufacturerNichicon

DescriptionCAP ALUM 560UF 20% 35V SMD

DatasheetUCX Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 70mOhm 2000 Hrs @ 135°C

To learn about the specification of UCX1V561MNQ1MS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCX1V561MNQ1MS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCX1V561MNQ1MS.
We are offering UCX1V561MNQ1MS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UCX1V561MNQ1MS - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCX Series
Standard Package	200
Manufacturer	Nichicon
Series	UCX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	70mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	375mA @ 120Hz
Ripple Current @ High Frequency	750mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
