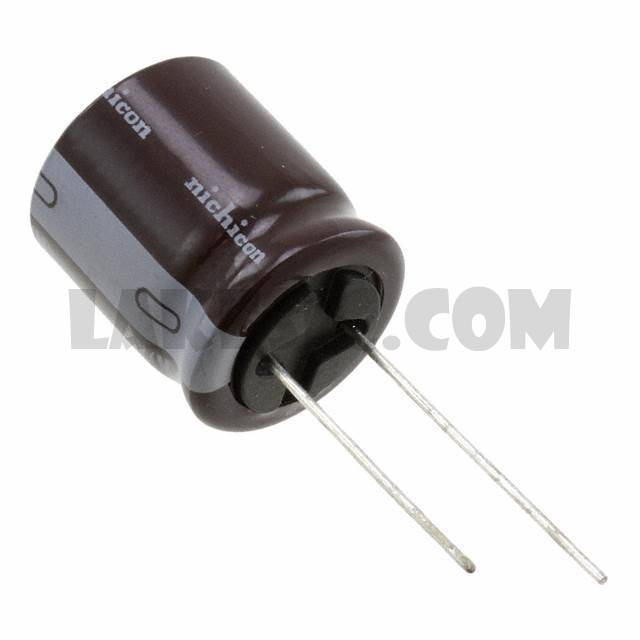

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCY Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCY
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	815mA @ 120Hz
Ripple Current @ High Frequency	1.63A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCY2E680MHD1TO	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G470MHD3TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCYW6470MHD	Nichicon, 47µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E330MPD1TD	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D221MHD3TN	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E151MHD	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C121MHD1TO	Nichicon, 120µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E680MHD1TO	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G6R8MPD1TD	Nichicon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E151MHD1TN	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D390MPD1TD	Nichicon, 39µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C820MPD9TD	Nichicon, 82µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View

UCY2E121MHD6TN

Part NumberUCY2E121MHD6TN
