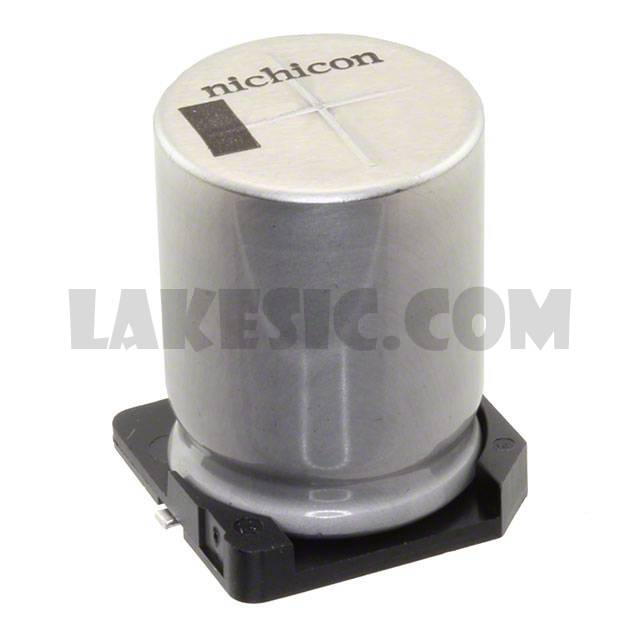

UCZ1J561MNQ1MS

Part NumberUCZ1J561MNQ1MS

ManufacturerNichicon

DescriptionCAP ALUM 560UF 20% 63V SMD

DatasheetUCZ Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 70mOhm @ 100kHz 4000 Hrs @ 125°C

To learn about the specification of UCZ1J561MNQ1MS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCZ1J561MNQ1MS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCZ1J561MNQ1MS.
We are offering UCZ1J561MNQ1MS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UCZ1J561MNQ1MS - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCZ Series
Standard Package	1
Manufacturer	Nichicon
Series	UCZ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	70mOhm @ 100kHz
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.25A @ 120Hz
Ripple Current @ High Frequency	2.5A @ 100kHz
Lead Spacing	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.886" (22.50mm)
Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
