UCZ2A301MNQ1MS

Part NumberUCZ2A301MNQ1MS

ManufacturerNichicon

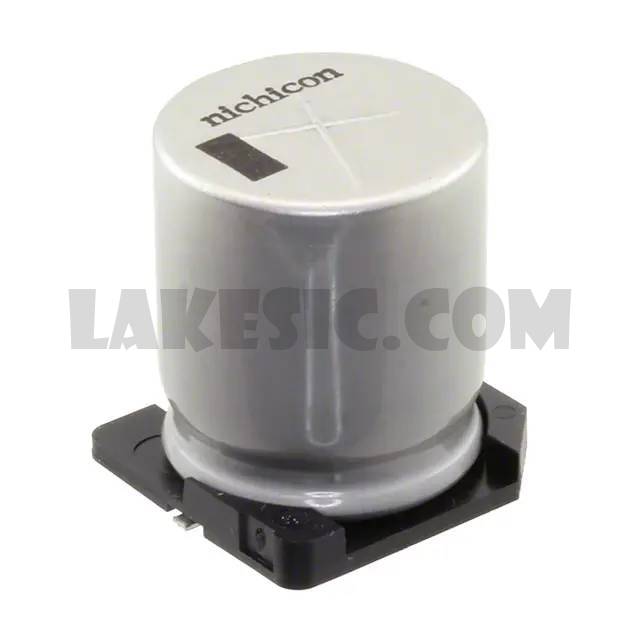

DescriptionCAP ALUM 300UF 20% 100V SMD

DatasheetUCZ Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description300µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 110mOhm @ 100kHz 4000 Hrs @ 125°C

To learn about the specification of UCZ2A301MNQ1MS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCZ2A301MNQ1MS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCZ2A301MNQ1MS.
We are offering UCZ2A301MNQ1MS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UCZ2A301MNQ1MS - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCZ Series
Standard Package	75
Manufacturer	Nichicon
Series	UCZ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	300µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	110mOhm @ 100kHz
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	850mA @ 120Hz
Ripple Current @ High Frequency	1.7A @ 100kHz
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.886" (22.50mm)
Surface Mount Land Size	0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
