Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	UES1304 - 06
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.25V @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	20µA @ 300V
Capacitance @ Vr, F	-

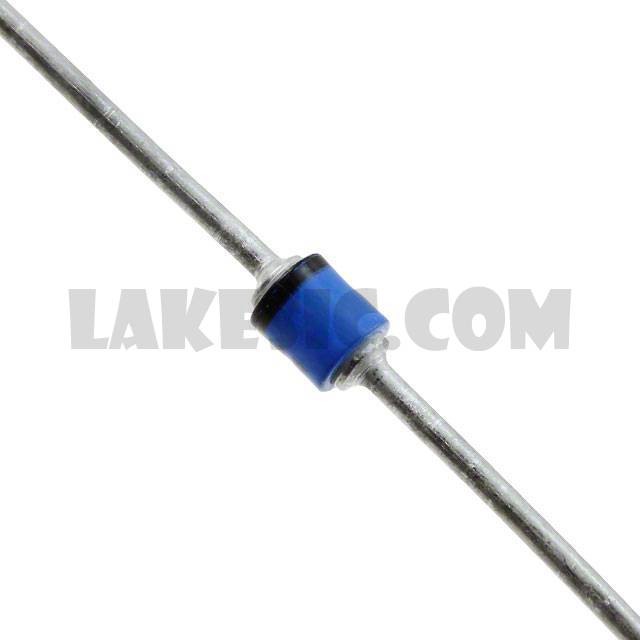

Mounting Type	Through Hole
Package / Case	B, Axial
Supplier Device Package	-
Operating Temperature - Junction	-55°C ~ 150°C
