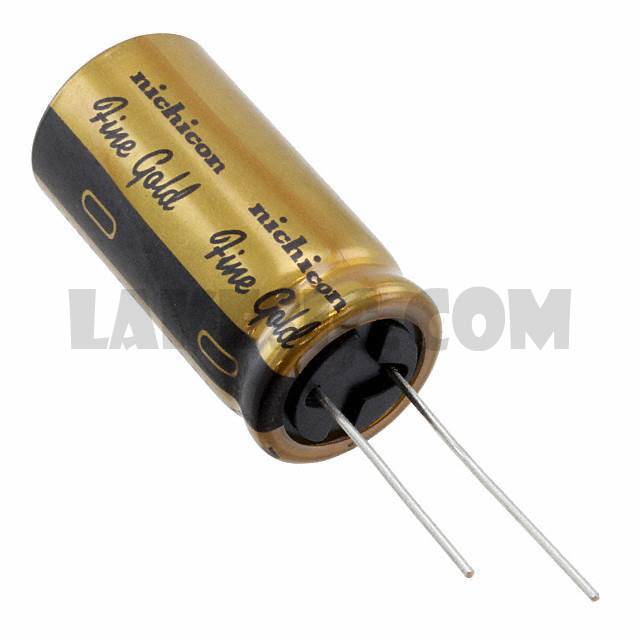

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.4A @ 120Hz
Ripple Current @ High Frequency	1.61A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1V471MHM1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J330MPM1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K100MEM1TD	Nichicon, 10µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1C222MHM1TO	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V220MEM1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A101MHM1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K470MPM	Nichicon, 47µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A101MEM1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A102MHM	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H331MHM1TO	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V101MPM1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1C472MHM	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1J102MHM

Part NumberUFG1J102MHM
