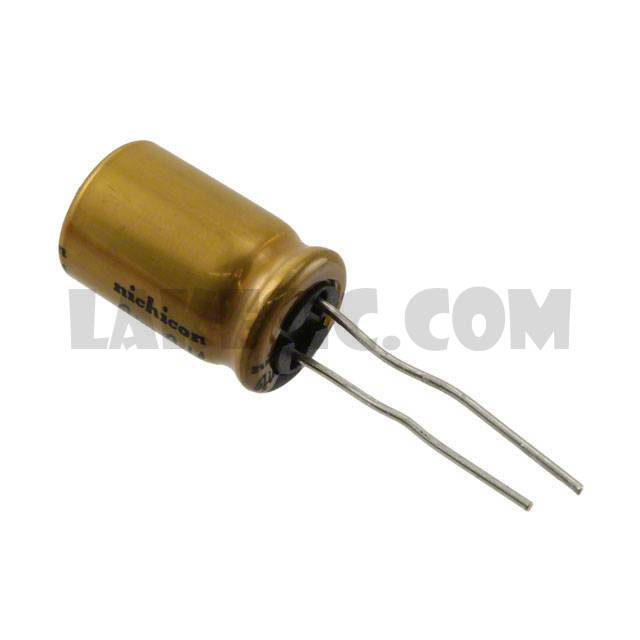

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UFG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	420mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1V101MPM1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2AR33MDM1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A221MHM1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H2R2MDM1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J101MPM1TD	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A101MHM1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H471MHM1TO	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H100MDM1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V221MPM1TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H220MEM	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J102MHM	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1E471MHM1TO	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1J221MHM1TO

Part NumberUFG1J221MHM1TO
