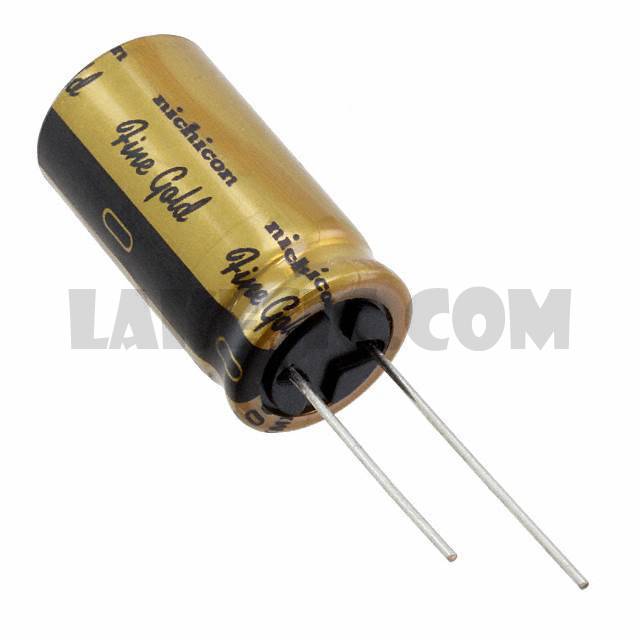

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	650mA @ 120Hz
Ripple Current @ High Frequency	975mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1V101MPM1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1C101MPM	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V471MHM1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2AR47MDM1TD	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG680MBN40X55	Rubycon, 680µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG1H330MPM1TD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A221MHM1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A010MDM1TD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1C221MPM	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1000MBN35X85	Rubycon, 1000µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG2A100MPM1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H0R1MDM	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1K331MHM

Part NumberUFG1K331MHM
