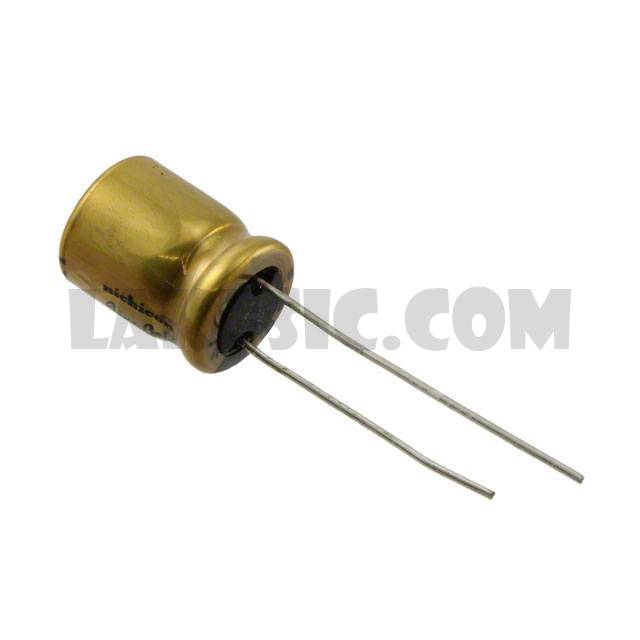

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UFG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	176mA @ 120Hz
Ripple Current @ High Frequency	264mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1A222MHM	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2AR47MDM	Nichicon, 0.47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H3R3MDM1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J221MHM1TO	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A3R3MDM1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG560MBN40X50	Rubycon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG2A220MPM1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A101MEM1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1500MBN40X95	Rubycon, 1500µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG2A2R2MDM	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V331MHM1TO	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A2R2MDM1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1V101MPM1TD

Part NumberUFG1V101MPM1TD
