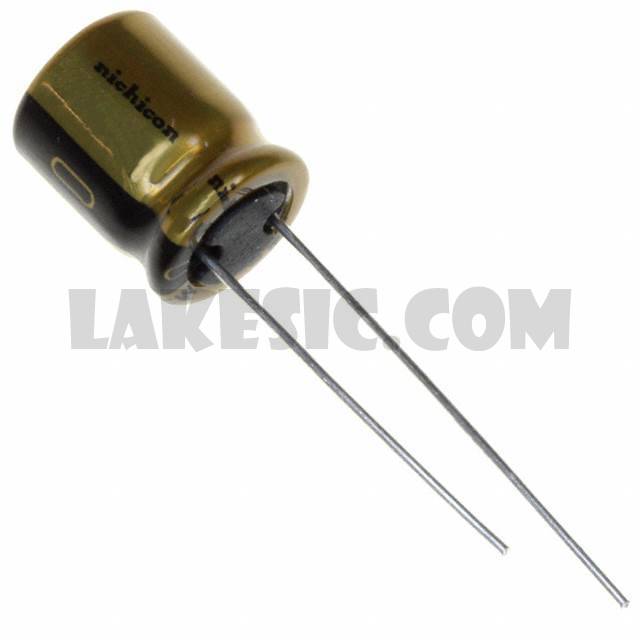

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	500
Manufacturer	Nichicon
Series	UFW
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	630mA @ 120Hz
Ripple Current @ High Frequency	724.5mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
