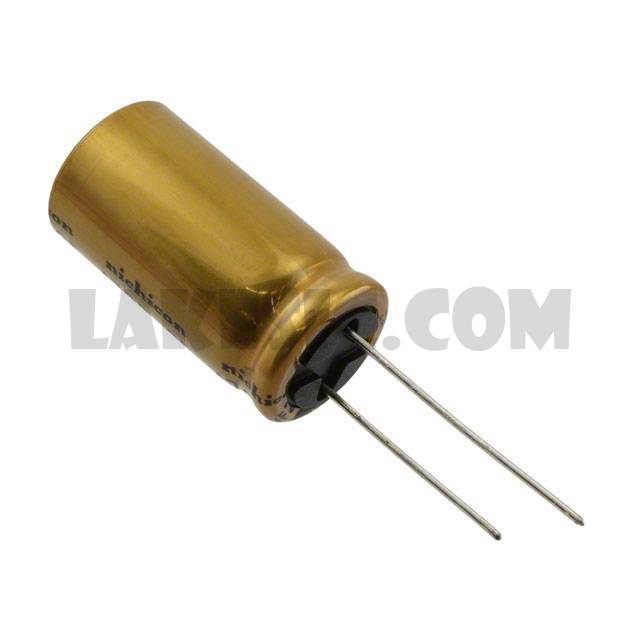

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	50
Manufacturer	Nichicon
Series	UFW
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	2.36A @ 120Hz
Ripple Current @ High Frequency	2.714A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.240" (31.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFW1H331MPD1TD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A331MHD1TO	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1J222MHD	Nichicon, 2200µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1E102MPD1TD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A330MPD1TD	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C223MRD	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2AR33MDD1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1A472MHD1TO	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C331MPD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1J330MED1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1E223MRD	Nichicon, 22000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View

UFW1E472MHD

Part NumberUFW1E472MHD
